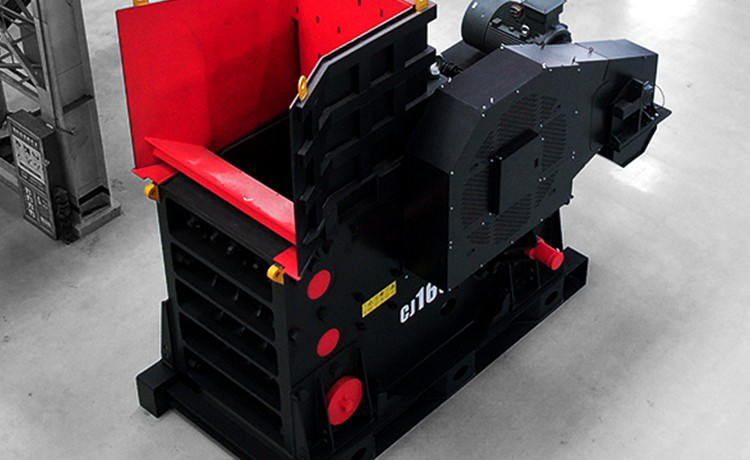

CJ Series European Type Jaw Crusher

CJ Series European Type Jaw Crusher

Capacity120–1590t/h

Feeding size480-1200mm

Introduction

The CJ series jaw crusher is with excellent performance introduced by Henan Fote Heavy Machinery Co.,Ltd. based on the needs of customers. Different from the traditional jaw crusher, there are significant improvements in the crusher's motion parameters, structural forms, and adjustment methods.

The CJ series jaw crusher commonly used for primary or secondary crushing in the mining material crushing. It has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation, installation, maintenance and adjustment. Particularly suitable for fixed crushing lines and mobile crushing plants.

SEND MESSAGE

Advantages

Technical Data

Model Feeding opening size(mm) Maximum Feeding Size(mm) Adjustment range of discharge port(mm) Processing capacity(t/h) Power (kw) Dimensions (L×W×H)(mm)
CJ80 800×510 410 40-175 55-335 4P 75 2660×2162×1800
CJ96 930×580 480 60-175 105-390 4P 90 2850×2180×1990
CJ100 1000×760 600 70-200 150-420 4P 110 3535×2350×2510
CJ106 1060×700 560 70-200 150-500 4P 110 3280×2510×2400
CJ116 1150×760 608 70-200 165-520 4P 132 3840×2440×2650
CJ120 1200×870 700 70-200 175-610 4P 160 3700×2790×2950
CJ125 1250×950 760 100-250 240-800 4P 160 4230×2820×3080
CJ130 1300×1000 800 100-250 270-831 4P 185 4220×2810×3330
CJ150 1400×1200 960 125-250 340-880 4P 200 5040×3445×3970
CJ160 1600×1200 960 150-300 430-1145 4P 250 5780×3460×3840
CJ180 1800×1200 960 150-300 485-1290 6P 315 5640×3780×3920
CJ200 2000×1500 1200 175-300 630-1435 6P 400 6600×4040×4580

Note: Processing capacity may vary with different materials and feeding sizes.

Model Feeding opening size(mm) Maximum Feeding Size(mm) Processing capacity(t/h)
CJ80 800×510 410 55-335
CJ96 930×580 480 105-390
CJ100 1000×760 600 150-420
CJ106 1060×700 560 150-500
CJ116 1150×760 608 165-520
CJ120 1200×870 700 175-610
CJ125 1250×950 760 240-800
CJ130 1300×1000 800 270-831
CJ150 1400×1200 960 340-880
CJ160 1600×1200 960 430-1145
CJ180 1800×1200 960 485-1290
CJ200 2000×1500 1200 630-1435

Note: Processing capacity may vary with different materials and feeding sizes.
