Throughput50-585t/h
Feeding size≤55mm

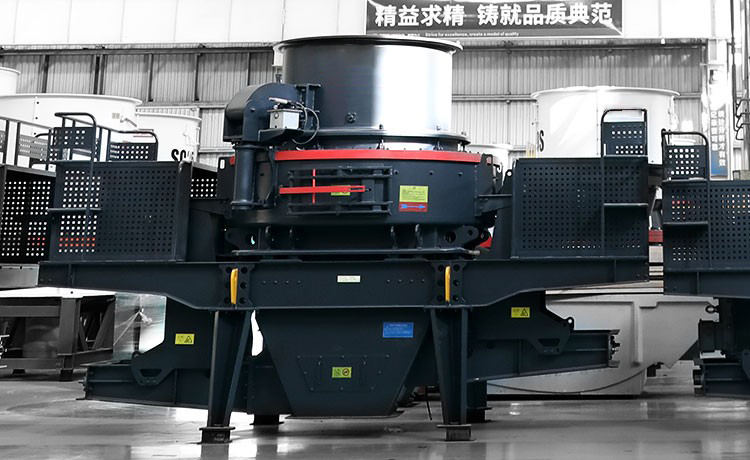

The HVI series sand maker is a new generation of products that our company introduces German technology, absorbs the domestic and foreign similar products' advanced technology development, and has many spontaneous R & D characteristics at the same time, which integrates all kinds of crushing modes,become the core equipment of mechanism sand industry. Can be widely used in metal and non-metallic ore, building materials, artificial sand and various metallurgical slag crushing and shaping.

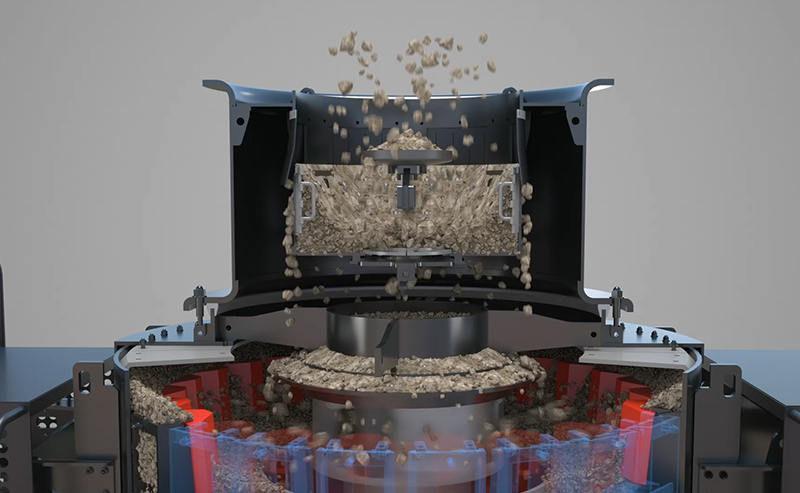

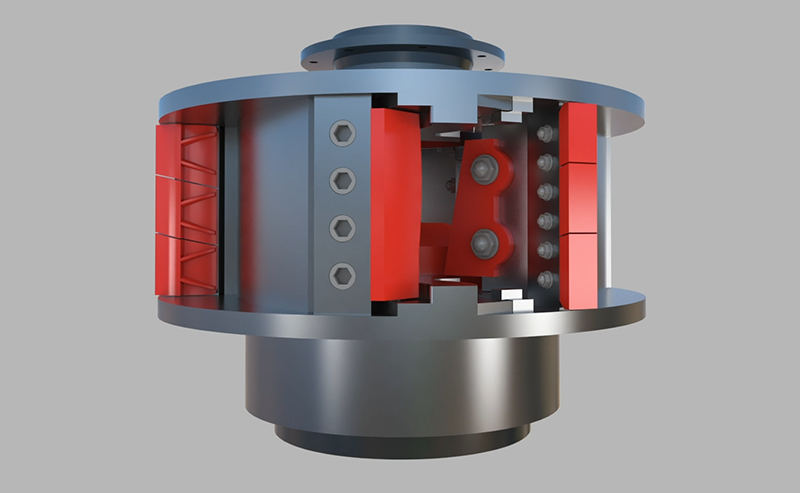

Deep cavity impeller -improves crushing efficiency and increases its throughout;
Lubrication -thin oil -type and grease -type modular design can achieve overall interchange.
Reasonable selection of crushing principle -impact crushing, excellent granules;
Core wear resistance — high wear resistance impact material.
| Model | Feeding Size (mm) | Throughput (t/h) | Power (kw) | ||
| Hard material (mm) | Soft material | Sand making (t/h) | Sand shaping | ||
| HVI 0815 | <30 | <35 | 50-140 | 90-230 | 2×75 |
| HVI 0818 | <30 | <35 | 60-190 | 110-283 | 2×90 |
| HVI 0922 | <35 | <40 | 70-210 | 150-330 | 2×110 |
| HVI 0926 | <35 | <40 | 85-240 | 170-380 | 2×132 |
| HVI 1032 | <40 | <45 | 130-278 | 180-400 | 2×160 |
| HVI 1040 | <40 | <45 | 180-284 | 250-440 | 2×200 |
| HVI 1263 | <50 | <55 | 320-498 | 370-585 | 2×315 |
Note: Processing capacity may vary with different materials and feeding sizes.
| Model | Throughput (t/h) | Power (kw) | |
| Sand making (t/h) | Sand shaping | ||
| HVI 0815 | 50-140 | 90-230 | 2×75 |
| HVI 0818 | 60-190 | 110-283 | 2×90 |
| HVI 0922 | 70-210 | 150-330 | 2×110 |
| HVI 0926 | 85-240 | 170-380 | 2×132 |
| HVI 1032 | 130-278 | 180-400 | 2×160 |
| HVI 1040 | 180-284 | 250-440 | 2×200 |
| HVI 1263 | 320-498 | 370-585 | 2×315 |
Note: Processing capacity may vary with different materials and feeding sizes.
