Capacity100-3200t/h
Feeding size≤600–≤1700mm

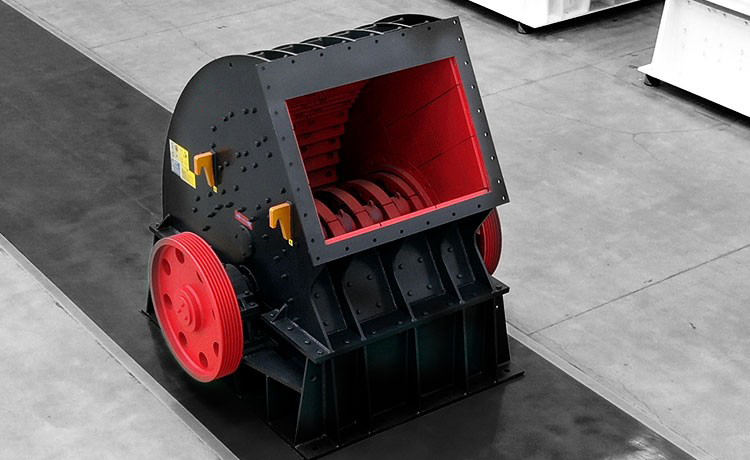

PCZ type heavy hammer crusher is widely used in many industries such as mining, smelting, building materials, high-way, railway, water conservancy and chemical industry. It is suitable for crushing various medium hardness and brittle materials with compressive strength less than 150Mpa, such as limestone, bluestone, coal gangue, etc.
Big crushing ratio, short flow process, less land occupation, less equipment, Easy maintenance;
PCZ Heavy hammer crushers,shape up by single crushing without second time, to reduce the cost by around 40%, which ensure energy and investment saving.
| Model | Rotor diameter×length (mm) | Feed Opening Length×width(mm) | Feeding Size (mm) | Processing Capacity(t/h) | Power (kw) | Dimensions L×W×H (mm) |
| PCZ1308 | Φ1330×790 | 870×780 | ≤380 | 60-160 | 132 | 2880×2130×2390 |
| PCZ1410 | Φ1400×1000 | 1060×740 | ≤450 | 80-210 | 2×90(160) | 2830×2100×2485 |
| PCZ1610 | Φ1600×1000 | 1090×930 | ≤480 | 100-230 | 2×132 | 3370×2415×2750 |
| PCZ1612 | Φ1600×1200 | 1340×1140 | ≤500 | 120-350 | 2×160 | 3370×2613×2750 |
| PCZ1615 | Φ1600×1500 | 1570×1140 | ≤550 | 200-550 | 2×200 | 3370×2925×2750 |
| PCZ1716 | Φ1700×1600 | 1420×1200 | ≤600 | 400-850 | 2×250 | 3520×3000×3210 |
| PCZ1720 | Φ1700×2000 | 2030×1200 | ≤650 | 500-1000 | 2×400 | 3670×3390×3330 |
| PCZ1920 | Φ1900×2000 | 1980×1210 | ≤750 | 800-1500 | 2×500 | 4490×3910×3600 |
| PCZ2225 | Φ2200×2500 | 2530×1610 | ≤1000 | 1500-3000 | 1250 | 4890×5010×4560 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding Size (mm) | Processing Capacity(t/h) |
| PCZ1308 | ≤380 | 60-160 |
| PCZ1410 | ≤450 | 80-210 |
| PCZ1610 | ≤480 | 100-230 |
| PCZ1612 | ≤500 | 120-350 |
| PCZ1615 | ≤550 | 200-550 |
| PCZ1716 | ≤600 | 400-850 |
| PCZ1720 | ≤650 | 500-1000 |
| PCZ1920 | ≤750 | 800-1500 |
| PCZ2225 | ≤1000 | 1500-3000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
