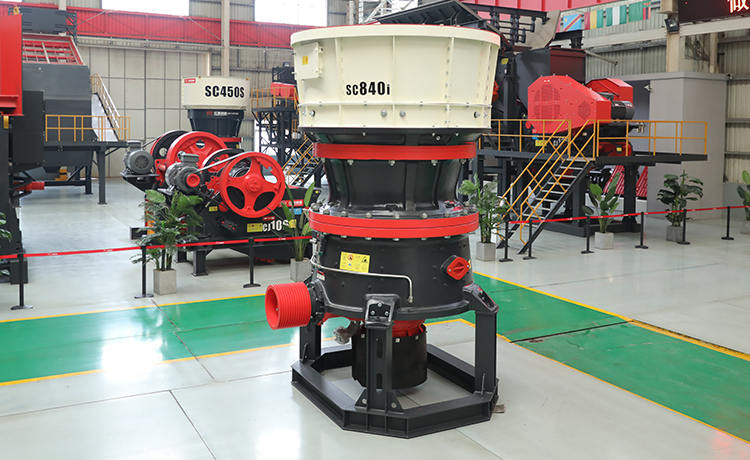

SC Series Single Cylinder Hydraulic Cone Crushers

SC Series Single Cylinder Hydraulic Cone Crushers

Capacity27-2181t/h

Feeding size≤600mm

Introduction

SC series cone crusher is developed on the basis of absorbing the world's most advanced technology and integrating the company's many years of design experience. It integrates mechanical, hydraulic, electrical and intelligent control and remote control. It has the advantages of high efficiency, good grain shape, hydraulic adjustment, remote automatic control, choice of multiple crushing cavity types, and adjustment of eccentricity without changing any parts.

SSC series cone crusher can be used as the second-stage crushing equipment to match with jaw crusher or gyratory crusher, or as the third-stage or fourth-stage crushing equipment, which can meet most production needs of users.

SEND MESSAGE

Advantages

Technical Data

Model Cavities Feeding Size(mm) Recommended Feeding Size(mm) Minimum Discharging Size(mm) Processing Capacity(t/h) Power (kw)
Secondary Crushing Series
SC100S C1 240 175 22 85-170 90
C2 200 150 19 70-130
SC160S C1 360 250 35 125-345 160
C2 300 210 32 108-305
SC250S C1 450 300 35 265-524 250
C2 400 270 29 225-448
SC315S C1 560 350 41 349-1050 315
C2 500 320 38 318-892
SC450S C1 600 375 44 498-1500 450
C2 480 300 41 454-1274
Tertiary Crushing Series
SC100 F1 150 115 10 45-135 90
F2 65 60 8 36-80
F3 38 30 4 27-57
SC160 F1 200 160 16 150-219 160
F2 90 75 13 124-163
F3 50 45 6 69-99
SC250 F1 240 190 16 116-396 250
F2 110 90 13 117-339
F3 70 55 8 90-251
SC315 F1 275 235 16 177-662 315
F2 215 190 16 171-643
F3 135 115 16 197-540
F4 85 65 13 195-432
SC560 F1 300 250 22 448-1512 560
F2 240 210 19 406-1464
F3 155 135 19 400-1372
F4 90 45 13 357-912
F5 80 35 10 280-775
SC750 F1 370 295 25 394-2181 750
F2 300 240 19 342-2020
F3 230 185 16 267-1814
F4 120 95 13 248-1165
F5 85 70 10 185-1170

Note: Processing capacity may vary with different materials and feeding sizes.

Model Cavities Feeding Size(mm) Processing Capacity(t/h)
Secondary Crushing Series
SC100S C1 240 85-170
C2 200 70-130
SC160S C1 360 125-345
C2 300 108-305
SC250S C1 450 265-524
C2 400 225-448
SC315S C1 560 349-1050
C2 500 318-892
SC450S C1 600 498-1500
C2 480 454-1274
Tertiary Crushing Series
SC100 F1 150 45-135
F2 65 36-80
F3 38 27-57
SC160 F1 200 150-219
F2 90 124-163
F3 50 69-99
SC250 F1 240 116-396
F2 110 117-339
F3 70 90-251
SC315 F1 275 177-662
F2 215 171-643
F3 135 197-540
F4 85 195-432
SC560 F1 300 448-1512
F2 240 406-1464
F3 155 400-1372
F4 90 357-912
F5 80 280-775
SC750 F1 370 394-2181
F2 300 342-2020
F3 230 267-1814
F4 120 248-1165
F5 85 185-1170

Note: Processing capacity may vary with different materials and feeding sizes.
