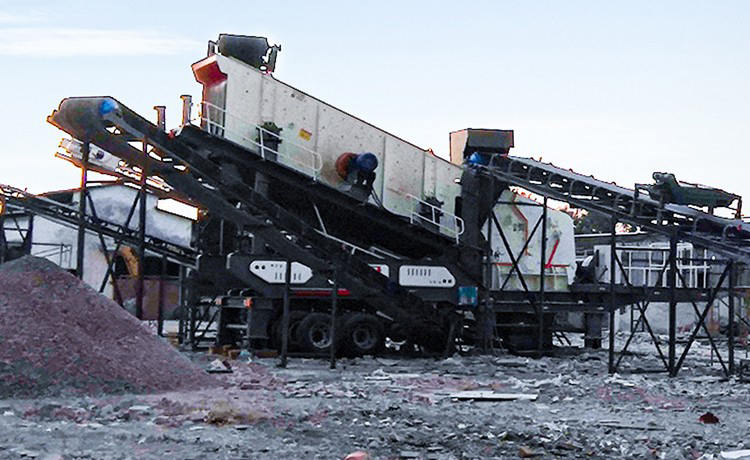

Wheel Type  Mobile Vibrating Screen

Wheel Type Mobile Vibrating Screen

Capacity50-650t/h

Feeding size60-660mm

Introduction

FTM's range of Wheel Type Mobile Vibrating Screen is ideal for a wide range of applications such as screening, grading and sizing to meet the requirements of contractors, mines and quarries.

These mobile vibrating screens are heavy-duty machines that are supplied complete and ready to use. The screens combine high capacity with a precise end product. Customers can choose to equip the vibrating screens with various specifications according to different needs. The vibrating screens are mounted on a skid and do not require a concrete foundation, making them quick to install and easy to integrate with our other product ranges.

SEND MESSAGE
Introduction

Advantages

Technical Data

Model ST673 ST993 ST1303
Dimensions of
Transmission Devices
Length 11000mm 12500mm 12500mm
Width 3800mm 4000mm 4000mm
Height 3800mm 3900mm 3900mm
Weight 28t 33t 38t
Feeding Belt Conveyor Dimensions
(Width×Length)
1000×10000mm 1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm 2700mm
Vibrating Screen Model 3HX1545 3HX1855 3HX2160
Sieving Layers 3 3 3
Belt Conveyor Dimensions
(Width×Length)
1000×7400mm 1000×7500mm 1000×7500mm
Discharging Height 3380mm 3460mm 3460mm
Belt Conveyor for
Coarse Material
Dimensions
(Width×Length)
500×5600mm 650×5800mm 650×5800mm
Discharging Height 3430mm 3570mm 3570mm
Belt Conveyor for
Medium-Sized Material
Dimensions
(Width×Length)
500×5300mm 650×5400mm 650×5400mm
Discharging Height 3150mm 3250mm 3250mm
Belt Conveyor
for Fine Material
Dimensions
(Width×Length)
500×5600mm 650×5800mm 650×5800mm
Discharging Height 3030mm 3080mm 3080mm
Transferring Belt Conveyors Dimensions
(Width×Length)
500×2000mm 650×2000mm 650×2000mm
Discharging Height 2130mm 2130mm 2130mm
Diesel Engine Power 75kw 75kw 96kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 54kw 57.5kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)

Model ST673 and ST993

Model ST673 ST993
Dimensions of
Transmission Devices
Length 11000mm 12500mm
Width 3800mm 4000mm
Height 3800mm 3900mm
Weight 28t 33t
Feeding Belt Conveyor Dimensions
(Width×Length)
1000×10000mm 1000×13000mm
Loading Height 2560mm 2680mm
Vibrating Screen Model 3HX1545 3HX2160
Sieving Layers 3 3
Belt Conveyor Dimensions
(Width×Length)
1000×7400mm 1000×7500mm
Discharging Height 3380mm 3460mm
Belt Conveyor for
Coarse Material
Dimensions
(Width×Length)
500×5600mm 650×5800mm
Discharging Height 3430mm 3570mm
Belt Conveyor for
Medium-Sized Material
Dimensions
(Width×Length)
500×5300mm 650×5400mm
Discharging Height 3150mm 3250mm
Belt Conveyor for
Fine Material
Dimensions
(Width×Length)
500×5600mm 650×5800mm
Discharging Height 3030mm 3080mm
Transferring Belt Conveyors Dimensions
(Width×Length)
500×2000mm 650×2000mm
Discharging Height 2130mm 2130mm
Diesel Engine Power 75kw 96kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 54kw 65.5kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model ST1303

Model ST1303
Dimensions of
Transmission Devices
Length 12500mm
Width 4000mm
Height 3900mm
Weight 38t
Feeding Belt Conveyor Dimensions
(Width×Length)
1000×13000mm
Loading Height 2700mm
Vibrating Screen Model 3HX2160
Sieving Layers 3
Belt Conveyor Dimensions
(Width×Length)
1000×7500mm
Discharging Height 3460mm
Belt Conveyor for
Coarse Material
Dimensions
(Width×Length)
650×5800mm
Discharging Height 3570mm
Belt Conveyor for
Medium-Sized Material
Dimensions
(Width×Length)
650×5400mm
Discharging Height 3250mm
Belt Conveyor for
Fine Material
Dimensions
(Width×Length)
650×5800mm
Discharging Height 3080mm
Transferring Belt Conveyors Dimensions
(Width×Length)
650×2000mm
Discharging Height 2130mm
Diesel Engine Power 96kw
Manufacturer Carter Perkins
The Main Machine Power 65.5kw
Ways of Controlling Wired/Wireless (optional)
Model FTM3S1848 FTM3S1860 FTM3S2160
Transportation length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration Dualaxial Dualaxial Dualaxial
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
Model FTM3S1848 FTM3S1860 FTM3S2160
Transportation length(mm) 10280 11480 11480
Transportation Width(mm) 2830 2830 3150
Transportation Height(mm) 4350 4350 4350
Maximum Length(mm) 11100 11800 11800
Maximum Width(mm) 3600 3600 3970
Maximum Height(mm) 6000 6000 6500
Weight(t) 16 18 19
Tire Configuration Dualaxial Dualaxial Dualaxial
Vibrating Screen 3YZS1848 3YZS1860 3YZS2160
