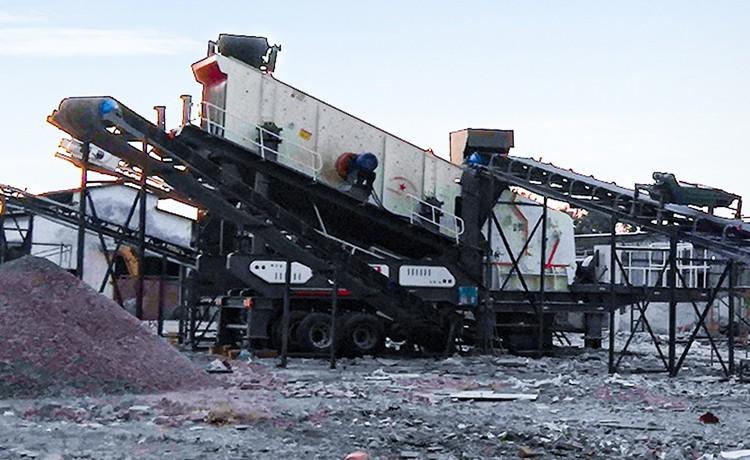

Wotetrack Crawler Mobile Vibrating Screen

Introduction

FTM's range of Wotetrack Crawler Mobile Vibrating Screen is ideal for a wide range of applications such as screening, grading and sizing to meet the requirements of contractors, mines and quarries.

These mobile vibrating screens are heavy-duty machines that are supplied complete and ready to use. The screens combine high capacity with a precise end product. Customers can choose to equip the vibrating screens with various specifications according to different needs. The vibrating screens are mounted on a skid and do not require a concrete foundation, making them quick to install and easy to integrate with our other product ranges.

SEND MESSAGE

Advantages

01
A wide range of screens for a variety of needs.
02
Adjustable stroke and screen angle to improve material processing.
03
Designed for multi-stage crushing processes to separate materials of different sizes.
04
The mobile machine can be moved and transferred to the source or quarry location.
05
Minimal maintenance is required, thus reducing downtime and associated costs.

Technical Data

Wotetrack Crawler Mobile Vibrating Screen
Wheel Type Mobile Vibrating Screen

Model		ST673	ST993	ST1303
Dimensions of Transmission Devices	Length	11000mm	12500mm	12500mm
	Width	3800mm	4000mm	4000mm
	Height	3800mm	3900mm	3900mm
	Weight	28t	33t	38t
Feeding Belt Conveyor	Dimensions (Width×Length)	1000×10000mm	1000×10000mm	1000×13000mm
Feeding Belt Conveyor	Loading Height	2560mm	2680mm	2700mm
Vibrating Screen	Model	3HX1545	3HX1855	3HX2160
Vibrating Screen	Sieving Layers	3	3	3
Belt Conveyor	Dimensions (Width×Length)	1000×7400mm	1000×7500mm	1000×7500mm
Belt Conveyor	Discharging Height	3380mm	3460mm	3460mm
Belt Conveyor for Coarse Material	Dimensions (Width×Length)	500×5600mm	650×5800mm	650×5800mm
Belt Conveyor for Coarse Material	Discharging Height	3430mm	3570mm	3570mm
Belt Conveyor for Medium-Sized Material	Dimensions (Width×Length)	500×5300mm	650×5400mm	650×5400mm
Belt Conveyor for Medium-Sized Material	Discharging Height	3150mm	3250mm	3250mm
Belt Conveyor for Fine Material	Dimensions (Width×Length)	500×5600mm	650×5800mm	650×5800mm
Belt Conveyor for Fine Material	Discharging Height	3030mm	3080mm	3080mm
Transferring Belt Conveyors	Dimensions (Width×Length)	500×2000mm	650×2000mm	650×2000mm
Transferring Belt Conveyors	Discharging Height	2130mm	2130mm	2130mm
Diesel Engine	Power	75kw	75kw	96kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins	Carter Perkins
The Main Machine	Power	54kw	57.5kw	65.5kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)

Model ST673 and ST993

Model		ST673	ST993
Dimensions of Transmission Devices	Length	11000mm	12500mm
	Width	3800mm	4000mm
	Height	3800mm	3900mm
	Weight	28t	33t
Feeding Belt Conveyor	Dimensions (Width×Length)	1000×10000mm	1000×13000mm
Feeding Belt Conveyor	Loading Height	2560mm	2680mm
Vibrating Screen	Model	3HX1545	3HX2160
Vibrating Screen	Sieving Layers	3	3
Belt Conveyor	Dimensions (Width×Length)	1000×7400mm	1000×7500mm
Belt Conveyor	Discharging Height	3380mm	3460mm
Belt Conveyor for Coarse Material	Dimensions (Width×Length)	500×5600mm	650×5800mm
Belt Conveyor for Coarse Material	Discharging Height	3430mm	3570mm
Belt Conveyor for Medium-Sized Material	Dimensions (Width×Length)	500×5300mm	650×5400mm
Belt Conveyor for Medium-Sized Material	Discharging Height	3150mm	3250mm
Belt Conveyor for Fine Material	Dimensions (Width×Length)	500×5600mm	650×5800mm
Belt Conveyor for Fine Material	Discharging Height	3030mm	3080mm
Transferring Belt Conveyors	Dimensions (Width×Length)	500×2000mm	650×2000mm
Transferring Belt Conveyors	Discharging Height	2130mm	2130mm
Diesel Engine	Power	75kw	96kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	54kw	65.5kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model ST1303

Model		ST1303
Dimensions of Transmission Devices	Length	12500mm
	Width	4000mm
	Height	3900mm
	Weight	38t
Feeding Belt Conveyor	Dimensions (Width×Length)	1000×13000mm
Feeding Belt Conveyor	Loading Height	2700mm
Vibrating Screen	Model	3HX2160
Vibrating Screen	Sieving Layers	3
Belt Conveyor	Dimensions (Width×Length)	1000×7500mm
Belt Conveyor	Discharging Height	3460mm
Belt Conveyor for Coarse Material	Dimensions (Width×Length)	650×5800mm
Belt Conveyor for Coarse Material	Discharging Height	3570mm
Belt Conveyor for Medium-Sized Material	Dimensions (Width×Length)	650×5400mm
Belt Conveyor for Medium-Sized Material	Discharging Height	3250mm
Belt Conveyor for Fine Material	Dimensions (Width×Length)	650×5800mm
Belt Conveyor for Fine Material	Discharging Height	3080mm
Transferring Belt Conveyors	Dimensions (Width×Length)	650×2000mm
Transferring Belt Conveyors	Discharging Height	2130mm
Diesel Engine	Power	96kw
Diesel Engine	Manufacturer	Carter Perkins
The Main Machine	Power	65.5kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)

Model	FTM3S1848	FTM3S1860	FTM3S2160
Transportation length(mm)	10280	11480	11480
Transportation Width(mm)	2830	2830	3150
Transportation Height(mm)	4350	4350	4350
Maximum Length(mm)	11100	11800	11800
Maximum Width(mm)	3600	3600	3970
Maximum Height(mm)	6000	6000	6500
Weight(t)	16	18	19
Tire Configuration	Dualaxial	Dualaxial	Dualaxial
Vibrating Screen	3YZS1848	3YZS1860	3YZS2160

Model	FTM3S1848	FTM3S1860	FTM3S2160
Transportation length(mm)	10280	11480	11480
Transportation Width(mm)	2830	2830	3150
Transportation Height(mm)	4350	4350	4350
Maximum Length(mm)	11100	11800	11800
Maximum Width(mm)	3600	3600	3970
Maximum Height(mm)	6000	6000	6500
Weight(t)	16	18	19
Tire Configuration	Dualaxial	Dualaxial	Dualaxial
Vibrating Screen	3YZS1848	3YZS1860	3YZS2160
